Sip0807 Stay-In-Play Duo - 93-0003
$999.95
+ Free Shipping!
Sale Prices Shown are Valid Until 02/22/25.
PRODUCT DESCRIPTION
Sip0807 Stay-In-Play Duo
Item 93-0003 | MFR# 99251
For any motorhome with hydraulic brakes.

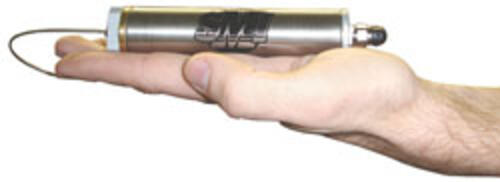

The SMI Stay-IN-Play DUO is truly an improvement in towed vehicle
brake systems. Simple to control, easier to use, and the smallest
actuator in the industry. This supplemental-braking system is installed
so there is no set up required for towing your vehicle. To get ready to
tow you simply turn it on; that all. Turn it on... and tow. No boxes to
move in and out! Duo's small operating unit is installed under the hood
so you never know it is there; inside, just a small operating module to
control the towed vehicle brakes with no physical connection to the
motorhome.
The Stay-IN-Play DUO system energizes the towed vehicle power
brakes without the engine running, so you have a soft brake pedal. Once
engaged, DUO replenishes the vacuum in the car's power brake system.
With the power brakes active, only 10 - 12 pounds of pressure is
required to provide a gentle smooth stop.
Activation of the towed vehicle's brakes require BOTH deceleration
and the brake lights from the motorhome. Once BOTH signals are present,
DUO applies the brakes. Once engaged, DUO will apply progressive brake
effort in the towed vehicle. Because DUO uses both brake lights from
the coach and deceleration, there is absolutely no delay.
A signal from the towed vehicle's brake light switch is used to
alert you in the coach that the towed vehicle's brakes are applied.
This is accomplished by means of a high-density LED light mounted on
the dash or mirror of the towed vehicle, and visible to the coach
driver via the back-up camera, thereby requiring no monitor wiring in
the coach at all!!
NOTE: A supplemental towed vehicle braking system is highly
recommended and is legally required by many states.
Click here for Stay-in-Play Duo
Installation Instructions
Click Here
for a 38 minute installation video on YouTube.
For a portable braking system check out Delta Force
For Diesel Motorhomes with Air Brakes check out AirForce One
More Details
- Related Products
-
94-9557
38671
94-4105
38454
38539 - Manufacturer Numbers
- 99251, 14-8890
- Manufacturer
- Smi
- Free Ground Shipping
- Yes
- UPC List
- 866723000013
- Installation Type
- Hardwired
- Model
- Stay-In-Play Duo
- Features
- > 100% Progressive > Zero Setup to Tow/Drive > Operating Unit Mounted Under the Hood > Requires BOTH Brake Lights from Coach and Deceleration > Fits Every Motorhome and Car > Industry's Smallest Actuator > No Pulleys - 1 Anchor into Firewall > Energizes Power Brakes > 100% Mechanical > No Power Draw
