Winegard Sensar - 22-1274
PRODUCT DESCRIPTION

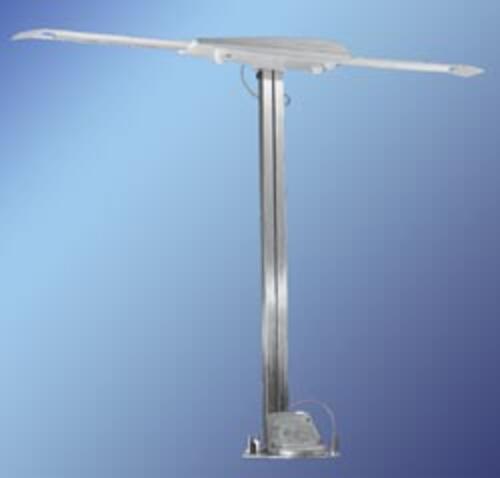

Winegard Sensar
 |  |
 | Check out the new Wingman. Easy add-on to optimize your Sensar antenna for enhanced HDTV reception | NEW Accessory! Compliment this Antenna with the SureLock TV Signal Finder. Point your antenna to the strongest towers BEFORE scanning for channels. Click Here |
RV Antennas - The Popular Winegard RV3090
and RV7090 Sensar II Have Been Upgraded to RV3095/RV7095/Sensar III
RV Antennas from Winegard have been long time favorites of RVers and campers. The 75 ohm Sensar RV-3090/RV3095 antenna has a built-in amplifier and unique circuitry that gives you clear VHF/UHF reception whenever you park. Raise, lower and rotate the SensarIII antenna from inside your parked vehicle. It's easy to install and extends only four inches above the roof while traveling.
The antenna can be elevated to 40" above the roof line, and is bidirectional - it must be pointed toward the TV station you want to watch. It must be used while the vehicle is parked.
The switch has +12VDC receptacle, built-in two-way splitter for second TV outlet, a convenient power-on/off indicator light and cable TV input. For exterior RV TV/cable outlet, order WA or WT series weatherproof outlets. Standard elevating tubes 36", includes a 7042 power supply for the 3095.
The Winegard Sensar III 7095 includes the amplified antenna and lift, white power supply with on/off switch, 20' of 75 ohm coax cable, and a 6' TV set cord.
For additional information, go to the Winegard Website for these RV antennas.
TV Antennas - RV3095/RV7095 Specifications:
| Height | Lowered - 4" |
| Height | Raised - 40" |
| Width | 4.75" |
| Length including elements | 45.5" |
| Shipping Weight | 12 pounds |
| Amplifier Gain | VHF - 15.5 dB avg.,UHF - 19.5 dB avg. |
| Impedance | 75 ohm |
| Power Required | +12VDC at 85 ma |
