Coleman 13.5k White - 63134
PRODUCT DESCRIPTION
Coleman 13.5k White
Ceiling Assembly (White)
Part # 61365

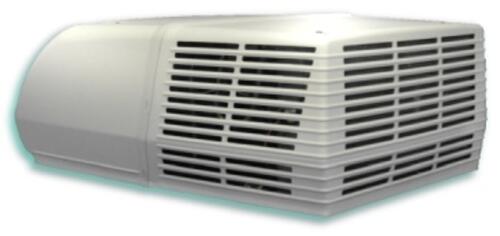

This RV air conditioner is an all-around solid value in cooling performance. The quality built Mach 3 Plus is the world's best-selling RV air conditioner. With a 13,500 BTUH capacity, it has plenty of power for most RV's and it's priced to the liking of most owners.
You can add the optional heat strip for 5600 BTUH of heat to take the chill off of those cool mornings.
For detailed specifications and dimensions,Click Here.>
NOTE: Your MUST purchase both an Upper Unit and a Ceiling Assembly for a complete system! These are sold as separate part numbers.
Ceiling Assembly Configurations (Select the Listed Parts for Your Configuration from the list which Follows) | ||||
Non-Ducted | Non-Ducted w/Wall Thermostat | Ducted | Ducted Park Models | |
| Ceiling Assembly | 61365 | 65344 | 63130 Cool Only, | 63126 |
| Electric Heat Kit (Opt.) | 67306 | 67306 | 67306 | |
| Wall Thermostat | 60277 | 60277 | 64680 | |
| Cool-Only Control Package | 65346 | |||
| Heat-Cool Control Package | 65345 plus 67306 | |||
| Manual Control Ceiling Assembly (No Thermostat) | 64444 | |||
The Upper Units featured here are Manufacturer's designated replacements for certain Original Equipment installed by the coach manufacturer. They will not have solar panels or condensate pumps which may have been installed on the OEM units. If your model number is not found here, Click Here for a complete Cross-Reference List.
If your model
number is listed below, old or new... | Then order the
following replacement: | |
Mfg. Number | Old Mfg. Number
(R-22) | |
48203-876 | 8333E876 | 63134 (White) |
48203-879 | N/A | 48203-879 (Black) |
48203-866 | 8333E876 | 63134 (White) |
48253-866 | 8333E876 | 63134 (White) |
48253-876 | 8333E876 | 63134 (White) |
48263-876 | 8333E876 | 63134 (White) |
48203-869 | N/A | 48203-879 (Black) |
48253-869 | N/A | 48203-879 (Black) |
48253-879 | N/A | 48203-879 (Black) |
FREQUENTLY BOUGHT TOGETHER
Coleman Ceiling Assembly
Heat/Cool Control Kit
Coleman Electric Heat Kit
7330-3351 T/Stat, Ht-Cool
Coleman Non-Ducted Cool Only Control Package
Coleman Ducted Ceiling Assembly - Cool Only - No T-Stat - White
Ducted Adb W/Heat Wht
Manual Ducted Adb Cool-Wh
Cool Only 24v Adb
Coleman Park Model Thermostat - 24v Standard - White
More Details
- Product Cross-Sells
-
64521
72.0727
61359
67306
41.0013
60277
65346
63130
65192
64444
63126
64680 - Related Products
-
64955
60403
66567
60962
66578
77-4347 - Manufacturer Numbers
- 48203C966, 08-0079
- Manufacturer
- Coleman/Rvp
- Freight Charge Residential
- 130
- UPC List
- 755790118021
- Application
-
Ducted
Non Ducted - BTU Size
- 13500
- Color
- White
- Mount
- Rooftop
- Profile
- Standard
- Voltage
- 120 Volt
- Specifications
- Operates on 115 Volts AC. Full load of 14.9 amps for cooling, and 16 for heating(with heat strip installed) Weighs 110 pounds.
- Features
- Two-speed fan for better control of air flow. Easy installation into standard 14" roof vent. Two year parts and labor warranty. You must send in your warranty card.
