Coleman RV Air Conditioning Mach 15 - 15,000 Btuh - 63140
PRODUCT DESCRIPTION

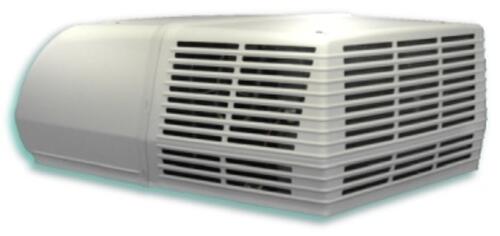

Coleman RV Air Conditioning Mach 15 - 15,000 Btuh
Coleman-Mach 15 is a 15,000 Btuh Air Conditioner Will Keep You
Chilled During Your Summer Travels.
Durability and sheer raw cooling power make the Coleman-Mach series the most
popular mobile A/C unit on the market. With cooling output of 14,800 btus, you
are sure to keep cool no matter the weather right outside your RV. The
Coleman-Mach 15 is engineered for higher air flows, the type of air flow needed
for today’s ducted cooling systems.
You can add an optional heat strip to your unit to keep you warm on those
chilly summer mornings or evenings.
More benefits:
- Easy installation onto a standout 14” roof vent.
- Two year parts and labor warranty. You must send in
your warranty card.
- Two-speed fan for better control of air flow.
- Operates on 115 Volts AC.
- Full load of 16 for cooling, and 16 for heating (with
heat strip installed).
- Weighs 110 pounds.
Please be aware! You MUST purchase both an Upper Unity and a Ceiling
Assembly for a complete system. See below for part numbers.
For
detailed specifications and dimensions, Click Here.
Ceiling Assembly Configurations | ||||
| Non-Ducted | Non-Ducted | Ducted | Ducted Park Models |
Ceiling Assembly | 64521 or 72.0727 | 41.0013 | 63130 Cool Only, | 63126 |
Electric Heat Kit
(Opt.) | 67306 | 67306 | 67306 | |
Wall Thermostat | | 60277 | 60277 | 64680 |
Cool-Only Control
Package | | 65346 | | |
Heat-Cool Control
Package | | 61359 plus 67306 | | |
Manual Control Ceiling
Assembly (No Thermostat) | | | 64444 | |
The Upper
Units featured here are Manufacturer's designated replacements for certain
Original Equipment installed by the coach manufacturer. They will not
have solar panels or condensate pumps which may have been installed on the OEM
units. If your model number is not found here, Click Here for a
complete Cross-Reference List.
If your model number is listed below, old or new... | Then order the following replacement: | |
Mfg. Number | Old Mfg. Number (R-22) | |
48204-876 | 8335D876 | 63140 (White) |
48204-866 | 8335D856 | 63140 (White) |
48254-866 | 8335D8564 | 63140 (White) |
48214-876 | 8335D8763 | 63140 (White) |
48254-876 | 8335D8764 | 63140 (White) |
48264-876 | 8335D8766 | 63140 (White) |
48254-879 | 8335D8794 (Black) | 63140 (White) |
48264-879 | 8335D8796 (Black) | 63140 (White) |
48704-876 | 8355-876 | 63140 (White) |
FREQUENTLY BOUGHT TOGETHER
Coleman Ceiling Assembly
7330-3351 T/Stat, Ht-Cool
Coleman Non-Ducted Cool Only Control Package
Heat/Cool Control Kit
Coleman Ducted Ceiling Assembly - Cool Only - No T-Stat - White
Ducted Adb W/Heat Wht
Manual Ducted Adb Cool-Wh
Cool Only 24v Adb
Coleman Park Model Thermostat - 24v Standard - White
More Details
- Product Cross-Sells
-
64521
72.0727
41.0013
60277
65346
61359
63130
65192
64444
63126
64680 - Related Products
-
64955
60403
66567
60962
66578
77-4347 - Manufacturer Numbers
- 48204C866, 08-0080
- Manufacturer
- Coleman/Rvp
- Freight Charge Residential
- 130
- UPC List
- 755790117727
- Application
-
Ducted
Non Ducted - BTU Size
- 15000
- Color
- White
- Mount
- Rooftop
- Profile
- Standard
- Voltage
- 120 Volt
- Specifications
- Operates on 115 Volts AC. "Full load of 16 for cooling and 16 for heating(with heat strip installed)." "Weighs 110 pounds. "
- Features
- Easy installation onto a standout 14 roof vent. "Two year parts and labor warranty. You must send in your warranty card." "Two-speed fan for better control of air flow."
