Duo-Therm Brisk Air II Air Conditioner - 13,500 Btuh - B57915
PRODUCT DESCRIPTION

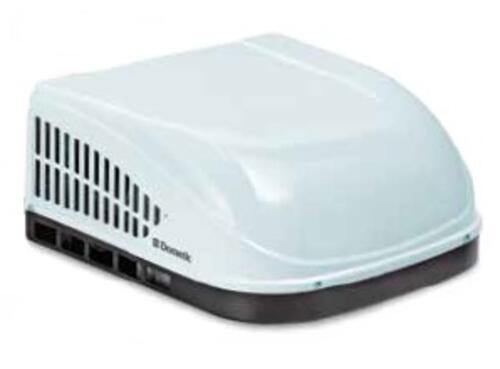

Duo-Therm Brisk Air II Air Conditioner - 13,500 Btuh
The Duo-Therm Brisk Air II will keep you cool in the hottest of weather conditions
The
Brisk Air II blows
ice cold no matter how hot and stuffy it is outside, keeping you cool
and
comfortable.
ATTENTION NEWMAR COACH OWNERS:
The New Brisk Air II A/C will not work on a Newmar Coach. (The blower position has moved and will not line up with the plenum used by Newmar). DOMETIC has a solution! Please call PPL at 800-755-4775 for details.
Non-Ducted w/Ceiling Control | Non-Ducted w/Wall Thermostat | Ducted | |
Ceiling Assembly | 3105935.039 (SW) OR 3105935.047 (PW) | ||
Wall Thermostat (Single Zone LCD) | Please call for assistance | 3313189.000 (PW) OR (3313189.015) (Black) | |
Electric Heat Kit (Optional) | 3314998.000 | 3314998.000 | 3315450.000 |
CCC II T-Stat | 3314082.011 (PW) OR 3314082.000 (Black) | 3314082.011 (PW) OR 3314082.000 (Black) OR 3312020.000 (Multi-Zone) |
Important Note: New air conditioners, ceiling assemblies, thermostats and control systems, may not work with existing installed components. Some of these items may need to be replaced to properly match new components. Please call 800-755-4775 for assistance.
- 13,500Bthu
- Non-Ducted or Ducted
- 115vac, 60hz, 1ph
- 12.4 Compressor-rated load amps
- 2.7 Fan motor-rated load amps
- 300/350 SCFM, high speed max/min
- 13.7/1,530 Heater amps/wats @ 120vac
- 16oz - Refrigerant 410A
- 12 awg copper min wire size (up to 24 feet).
- 20amp time delay fuse or 20 HCAR circuti breaker (AC circuit protection)
- 72 lbs - installed weight
- 3.5kw min generator size for 1 unit
- 5.0kw min generator size for 2 units
- ADB or Thermostat control options
FREQUENTLY BOUGHT TOGETHER
Heatstrip Brsk 2
Heat Kit For Ducted Model
More Details
- Product Cross-Sells
-
3314998.000
3315450.000 - Related Products
-
3314851.000
3314850.000
3314082.011 - Manufacturer Numbers
- B57915
- Manufacturer
- Dometic Dealer Direct
- Free Ground Shipping
- Yes
- Freight Charge Residential
- 120
- Brand
- Brisk Air II
- BTU Size
- 13500
- Color
- White
- Mount
- Rooftop
- Profile
- Standard
- Voltage
- 120 Volt
