PRODUCT DESCRIPTION

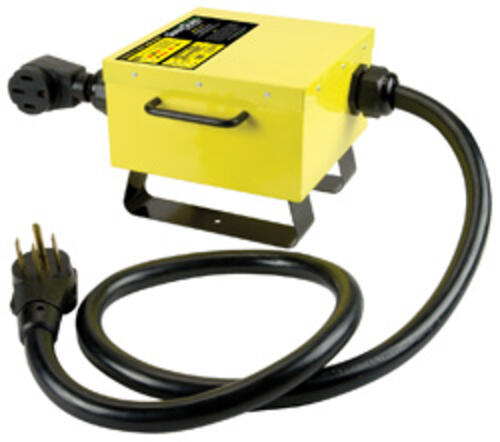

Surge Guard Voltage Regul

This RV Voltage Regulator is a reliable way to monitor and regulate your RV voltage!

The Surge Guard Voltage Regulator automatically detects high and low line voltage and can boost voltage to an acceptable level during times of low power, preventing low voltage damage to your RV appliances and electronic devices. The AC power at the park's pedestal is not always reliable or consistant. It could be wired wrong or suffer low voltage during periods of high demand.

Today's RV's contain advanced electronics including computers, TV's, satellite receivers, microwave ovens, air conditioners and other sophisticated appliances. Poor power quality entering an RV can not only effect the longevity of electronic equipment and motors, but can lead to thousands of dollars in repairs and create frustrating, unnecessary travel delays. The Surge Guard Voltage Regulator is intended for use with RVs to provide a reliable source of power when experiencing low RV park voltage. These innovative voltage regulators automatically and continually monitor line voltage conditions and boost voltage to an acceptable level, when needed, helping prevent low voltage damage to the RV's appliances and electronic devices.

In addition, the Surge Guard Voltage Regulators are the first boosters that include intelligence with easy-to-read LED status and fault indication panels. These LED's show ground status line conditions as well as indicate the under/over voltage conditions of each output line. This product is designed to be fault tolerant so that it can not be damaged by an open neutral that results in high voltage on one of the incoming lines. In the Low Voltage (Boost) Mode the Surge Guard Voltage Regulator raises the output voltage by 10%over the incoming line voltage. In the Bypass (No Boost) Mode the unit becomes a bypass element and simply passes the input voltage directly to the output. In the bypass mode the unit exhibits minimal insertion loss. On the 50A power source, using the Model 10175, each line voltage control circuit operates independently so that an increase only occurs on the required line. Using the Surge Guard Voltage Regulator in conjunction with a Surge Guard RV power protection (surge guard) product provides the ultimate combination of low voltage and surge protection. The surge guard must be plugged in after or down stream of the Surge Guard Voltage Regulator.

Mounting Bracket - Optional

A mounting bracket is available for mounting inside the RV. A well-ventilated space is required and the unit should be in a horizontal position. More information can be found at the manufacturer's RV Voltage Regulator website.
